Compression Molding Machine

Home > Product > Compression Molding Machine

Mineral Water Cap Compression Molding Machine

1.Product name: mineral water cap compression molding machine 2.Product specification: 3.Feature of mineral water cap compression molding machine: A.Rotary muti compression molding process and advanced hydraulic system bring the highly stable and accurate production B.Muti-cavity continuous high...

Product Details


Mineral Water Cap Compression Molding Machine


1.Product name:mineral water cap compression molding machine

cap compression machine (2).JPG plastic cap manufacturing compression line.jpg


cap compression molding machine test.JPG mineral water cap compression molding machine (4).JPG


2.Product specification:

Main Specification

Unit

CCM-JP24H

Raw Material

PE/PP

  Max. cap nominal diameter

mm

42

Max. cap nominal height

mm

25

Max. cap weight

g

4

Number of cavities

PCS

24

Avg Capacity(3025)

PCS /hour

35,000

Rated Power

Compression Molding Motor

Kw/h

4

Extruder Motor

Kw/h

15

 Hydraulic Motor

Kw/h

22

Extruder Heating Bands

Kw/h

46

Vacuum Pump Motor

Kw/h

3

Total

Kw/h

90

Dimension

Cap molding machine (L*W*H)

m

7x2.7x2.6

Machine Weight

T

11

Voltage/Frequency

V/Hz

380/50

Service Power

Kw/h

54


3.Feature of mineral water cap compression molding machine:

A.Rotary muti compression molding process and advanced hydraulic system bring the highly stable and accurate production

B.Muti-cavity continuous high speed rotation, short cycle time, and high production efficiency

C.Low energy consumption in heating and cooling process.No hot runner, save energy effectively

D.No raw material wasted in spilling and hot runner circuit, Every single granule of raw material is fully used

E.Safe machine door interlock,emergency stop switch,rigid machine housing, U/L certified

D.Fully automatic in line production, no hand touching, avoid contamination


4.Machine Advantage:

Compared with injection moulding machine and other mineral water cap compression molding machine manufacturers,Jeepine’s plastic cap compression moulding machine have the following advantages:

Plastic cap Compression moulding technology as a well known technology around the world in plastic cap production.

A:Energy saving

Less Energy Consumption,Overall energy savings per cap can be as high as 45%.

Because plastic cap compression moulding machine need lower heating temperature,which means less energy consumption in both heating and cooling.

B.High specific density and less shrinkage

Equal molding pressure, lower molding temperature allows the result of a higher density. Furthermore, less heating and cooling temperature gap accomplish less shrinkage of caps.

C.Quick color changeover without hot runners,only the extruder and independent cool plus mould contact the material .

D.Shorter cycle time (2 seconds) and therefore higher productivity

Due to lower extrusion temperature, caps are more quickly to be cooled down in cool plus mould.It makes shorter cycle time, thus capacity rises.

E.Easy and flexible maintenance

Independent mould make it easier to change mould, only with hand tools but not crane.

F.Less material waste:much lower costs per cap.


5.Mold Advantage:

Compared with injection moulding machine and other mineral water cap compression molding machine manufacturers,Jeepine’s plastic cap compression moulding machine have the following advantages:

Plastic cap Compression moulding technology as a well known technology around the world in plastic cap production.

A:Energy saving

Less Energy Consumption,Overall energy savings per cap can be as high as 45%.

Because plastic cap compression moulding machine need lower heating temperature,which means less energy consumption in both heating and cooling.

B.High specific density and less shrinkage

Equal molding pressure, lower molding temperature allows the result of a higher density. Furthermore, less heating and cooling temperature gap accomplish less shrinkage of caps.

C.Quick color changeover without hot runners,only the extruder and independent cool plus mould contact the material .

D.Shorter cycle time (2 seconds) and therefore higher productivity

Due to lower extrusion temperature, caps are more quickly to be cooled down in cool plus mould.It makes shorter cycle time, thus capacity rises.

E.Easy and flexible maintenance

Independent mould make it easier to change mould, only with hand tools but not crane.

F.Less material waste:much lower costs per cap.


6.Application: Beverage, Food, Medical, Plastic cap, water cap, beverage cap,CSD cap and mineral water cap compression molding machine

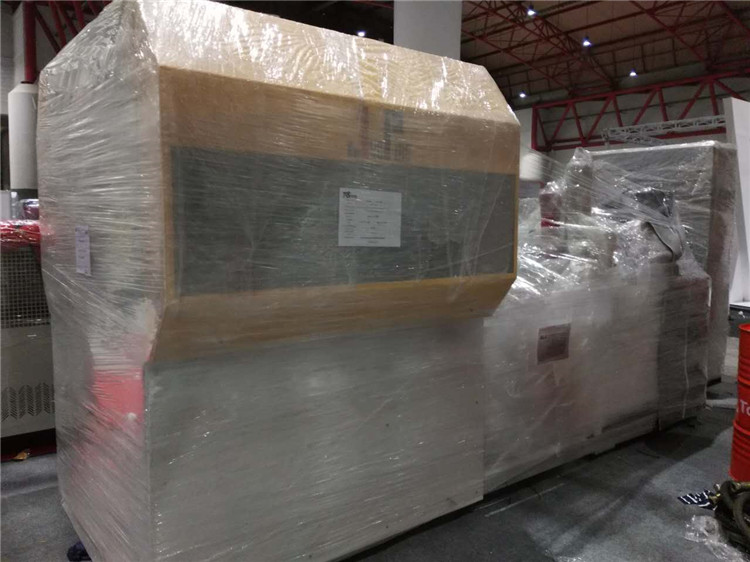

7.Package and transportation of mineral water cap compression molding machine:

The goods are shipped with container in the seaworthy vessel and suitable for export packaging


8.FAQ:

A.what is the process for making mineral water cap compression molding machine?

Main machine-Cap cooler-Cap sorter-Cap slitter-Cap package

B. how far from the baiyun airport to your compression moulding factory?

1 hour

C. how long to make the whole machine?

3 month for whole cap compression moulding machine

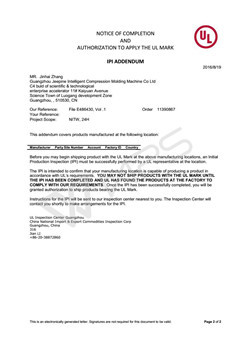

9.Product certification:ISO9001, UL



10.Function:Cap compression machine for bottle cap production


Hot Tags: mineral water cap compression molding machine, China, manufacturers, factory, customized
