Compression Molding Machine

Home > Product > Compression Molding Machine

Plastic Bottle Cap Machine

Plastic bottle cap machine Jeepine Compression Moulding Machine is the best choice for plastic bottle cap making machine ,Dedicated to High-efficiency and cost-saving compressing molding technology.especially for the bottled water cap compression molding,beverage cap moulding,dairy cap...

Product Details


Plastic bottle cap machine

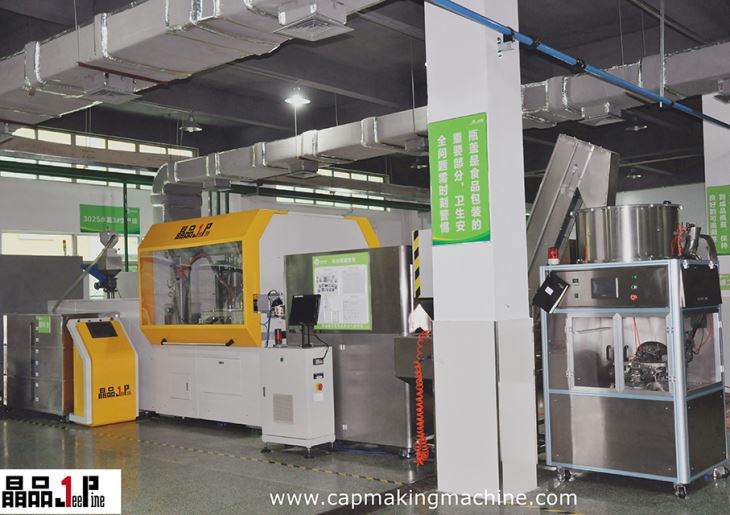

plastic bottle cap production line.jpg




Jeepine Compression Moulding Machine is the best choice for plastic bottle cap making machine ,Dedicated to High-efficiency and cost-saving compressing molding technology.especially for the bottled water cap compression molding,beverage cap moulding,dairy cap molding,liquor cap molding,condiment cap molding,cosmetics closure molding and pharmaceutical rotary closure molding machine. The advanced compression technology for plastic closures in china.

Jeepine cap compression moulding machine is made with high quality standard(the only same level competitor of SACMI CCM), and with very competitive price in the plastic bottle cap machine industry, With efficient management team and technical innovation team, jeepine’s bottle cap compression machine becomes more and more competitive, and the price of the bottle cap manufacturing machine becomes more and more attractive. As the only one public listed compression moulding technology company,jeepine cap compression moulding is the best choice of long term business partner.


Here is the technical parameters of our plastic bottle cap machine



Machine Series

Cap
Diameter

Cap
Height

Voltage&
Frequency

Capacity

Machine
Dimension

Machine
Weight

CCM-JP24G(Standard)

20-70mm

10-30mm

380V/50Hz /60Hz

24000pcs/h

5.5*1.9*2.2m

7000kg

CCM-JP24H(High Speed)

20-50mm

10-30mm

380V/50Hz /60Hz

35000pcs/h

7.0*2.7*2.6m

11000kg

CCM-JP36H(High Speed)

20-50mm

10-30mm

380V/50Hz /60Hz

60000pcs/h

8.0*4.2*2.6m

15000kg

CCM-JP48H
(High Speed)

20-40mm

10-30mm

380V/50Hz /60Hz

80000pcs/h

9.5*4.2*2.6m

15000kg



Main machine Feature:

A.Rotary muti compression molding process and advanced hydraulic system bring the highly stable and accurate production

B.Muti-cavity continuous high speed rotation, short cycle time, and high production efficiency

C.Low energy consumption in heating and cooling process.No hot runner, save energy effectively

D.No raw material wasted in spilling and hot runner circuit, Every single granule of raw material is fully used

E.Safe machine door interlock,emergency stop switch,rigid machine housing, U/L certified

D.Fully automatic in line production, no hand touching, avoid contamination

Compared with injection moulding machine and other plastic bottle cap machine

manufacturers,Jeepine’s cap compression molding machine have the following advantages:

Plastic bottle cap Compression molding technology as a well known technology around the world in plastic bottle cap production.



Energy saving

Less Energy Consumption,Overall energy savings per cap can be as high as 45%.

Because plastic bottle Cap compression molding machine need lower heating temperature,which means less energy consumption in both heating and cooling.

High specific density and less shrinkage

Equal molding pressure, lower molding temperature allows the result of a higher density. Furthermore, less heating and cooling temperature gap accomplish less shrinkage of caps.

Quick color changeover

Shorter cycle time (2 seconds) and therefore higher productivity

Due to lower extrusion temperature, caps are more quickly to be cooled down

in mould.It makes shorter cycle time, thus capacity rises.

Easy and flexible maintenance

Independent molds make it easier to change molds, only with hand tools but not crane.

Less material waste:lower costs per cap.


Advantages of cap compression cool plus mould:

1.High Quality

The major cap mold material has excellent wear resistance, high

corrosion resistance and high machinability, high coating hardness

2. High Precision

All the molds can precisely meet the dimension tolerance of cap

3.Customer-Oriented

Jeepine has professional manufacture equipment, dedicated to

mold design and development, absolutely cope with your needs

4. a modified coolant liquid circulation system inside the mould which ensures inner and outer punch are cooled.

5. This cool plus mould can ensure an output increase 45% compared to standard mould,means a quicker return on investment of the plastic cap compression production line.


ISO9001 certified and UL certified factory with international standard for plastic bottle cap compression moulding machine





1. Application:

mineral water plastic bottle cap compression molding,beverage cap moulding,dairy cap molding,liquor cap molding,condiment cap molding,cosmetics closure molding and pharmaceutical closure moulding.

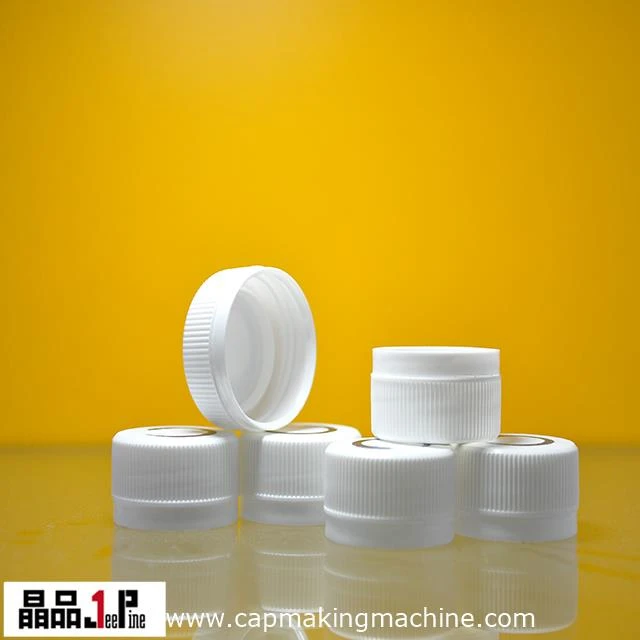

Plastic cap types:3025,2925,PCO 1881,PCO 1810,2622,38mm,45mm and 48mm plastic bottle cap

2. Quotation conditions

2. a. Incoterms: FOB Huangpu, China

3. b. Validity date: 90 days

3. Payment term:T/T ,L/C

A.40% down payment by T/T

B.60% balance payment by T/T, 60% against shipping documents

4. Packaging

4. The goods are shipped with container in the seaworthy vessel and suitable for export wooden box packaging.

5.Delivery

a. Trail mold: 35 working days from down payment received and cap drawing approval.

b. Industrial molds: 60 working days from trail mold confirmation.

c. Transportation time depends on actual situation.

6. Commissioning and Acceptance trail test

The Sellers is in charge of contractual machines installation and commissioning. The period is 7 working days, including staff training.

7.Warranty

The warranty period shall be 12 months from the date of acceptance approval.

8.After-sales Service Provided:

professional Engineer team available to service machinery overseas in 48 hours




Customer in the exhibition:

plastic cap compression molding machine for canada client.jpg

communicating with sacmi team.jpg
