Bottle Cap Molding Machine
Plastic bottle cap compression moulding → cap inspection → cap cooling → cap unscramble → cap slitting
this is the plastic bottle caps manufacturing process,the main machine is Jeepine plastic bottle cap molding Machine,Dedicated to High-efficiency and cost-saving cap compression moulding technology.especially for the bottled water cap compression moulding,beverage cap compression moulding,dairy cap compression molding,liquor cap compression moulding,condiment cap compression moulding,cosmetics closure and pharmaceutical closure Compression Molding. The most advanced plastic bottle cap molding technology for plastic bottle caps in china.
Jeepine plastic bottle cap molding Machine is made with high quality international standard, and with very competitive price in the plastic cap Compression Moulding Machine industry, With efficient management team and technical innovation team, jeepine’s plastic bottle cap molding Machine becomes more and more popular, As the only one public listed cap compression moulding technology company,jeepine plastic bottle cap molding Machine is the best choice of long term business partner in the world now.
Here is the technical parameters of our plastic bottle cap molding Machine
Machine Series | Cap | Cap | Voltage& | Capacity | Machine | Machine |
CCM-JP24G(Standard) | 20-70mm | 10-30mm | 380V/50Hz /60Hz | 24000pcs/h | 5.5*1.9*2.2m | 7000kg |
CCM-JP24H(High Speed) | 20-50mm | 10-30mm | 380V/50Hz /60Hz | 36000pcs/h | 7.0*2.7*2.6m | 11000kg |
CCM-JP36H(High Speed) | 20-50mm | 10-30mm | 380V/50Hz /60Hz | 60000pcs/h | 8.0*4.2*2.6m | 15000kg |
CCM-JP48H | 20-40mm | 10-30mm | 380V/50Hz /60Hz | 80000pcs/h | 9.5*4.2*2.6m | 15000kg |
Compared with injection molding machine and other plastic bottle cap molding Machine manufacturers,Jeepine’s plastic bottle caps manufacturing process have the following advantages:
Plastic cap Compression moulding technology as a well known technology around the world in plastic cap production.
Energy saving
Less Energy Consumption,Overall energy savings per cap can be as high as 45%.
Because plastic bottle cap compression moulding machine need lower heating temperature,which means less energy consumption in both heating and cooling.
High specific density and less shrinkage
Equal molding pressure, lower molding temperature allows the result of a higher density. Furthermore, less heating and cooling temperature gap accomplish less shrinkage of caps.
Quick color changeover without hot runners,only the extruder and independent cool plus mould contact the material .
Shorter cycle time (2 seconds) and therefore higher productivity
Due to lower extrusion temperature, caps are more quickly to be cooled down in cool plus mould.It makes shorter cycle time, thus capacity rises.
Easy and flexible maintenance
Independent mould make it easier to change mould, only with hand tools but not crane.
Less material waste:lower costs per cap.
Advantages of cap compression cool plus mould(the only one in china):
1.High Quality
The major cap mold material has excellent wear resistance, high
corrosion resistance and high machinability, high coating hardness
2. High Precision
All the molds can precisely meet the dimension tolerance of cap
3.Customer-Oriented
Jeepine has professional manufacture equipment, dedicated to
mold design and development, absolutely cope with your needs
4. a modified coolant liquid circulation system inside the mould which ensures inner and outer punch are cooled.
5. This cool plus mould can ensure an output increase 45% compared to standard mould,means a quicker return on investment of the plastic cap compression molding production line.

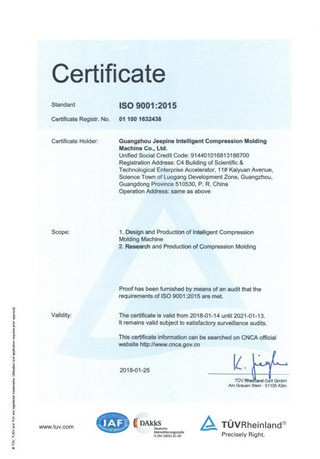

ISO9001 certified and UL certified factory with international standard for plastic cap Compression Moulding Machine
1. Application: mineral water plastic cap compression moulding,beverage plastic cap compression moulding machine,dairy plastic closure Compression Moulding,liquor cap compression molding,condiment cap compression molding,cosmetics plastic closure making and pharmaceutical plastic cap compression moulding...
Plastic closure types:
3025,2925,PCO 1881,PCO 1810,2622,38mm,45mm and 48mm plastic cap
2. Quotation conditions
2. a. Incoterms: FOB Huangpu, China
3. b. Validity date: 90 days
3. Payment term:T/T ,L/C
A.40% down payment by T/T
B.60% balance payment by T/T, 60% against shipping documents
4. Packaging
4. The cap compression moulding machine are shipped with container in the seaworthy vessel and suitable for export wooden box packaging.
5.Delivery
a. Trail mould: 35 working days from down payment received and cap drawing approval.
b. Industrial mould: 60 working days from trail mold confirmation.
c. Transportation time depends on actual situation.
6. Commissioning and Acceptance trail test
The Sellers is in charge of contractual machines installation and commissioning. The period is 7 working days, including staff training.
7.Warranty
The warranty period shall be 12 months from the date of acceptance approval.
8.After-sales Service Provided:professional Engineer team available to service machinery overseas in 48 hours
