Compression Molding Machine

Home > Product > Compression Molding Machine

Compression Moulding

1.Product name: compression moulding 2.Product specification: 3.Feature: A.Rotary muti compression molding process and advanced hydraulic system bring the highly stable and accurate production B.Muti-cavity continuous high speed rotation, short cycle time, and high production efficiency C.Low...

Chat Now
Product Details

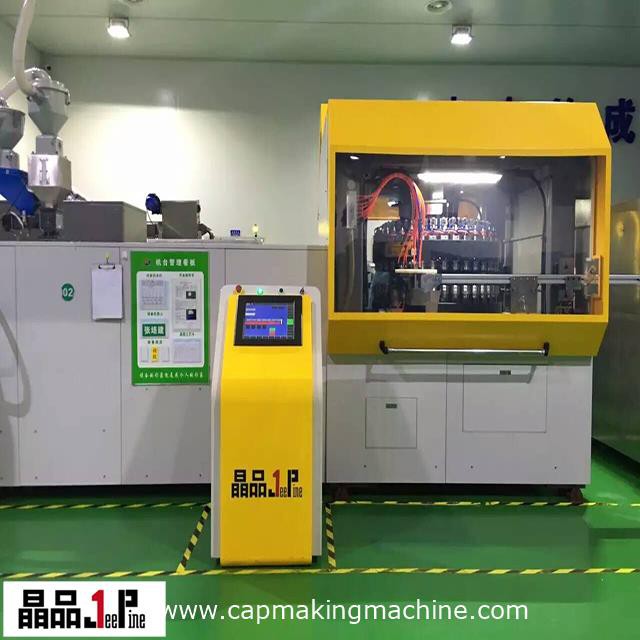

Compression Moulding


1.Product name: compression moulding

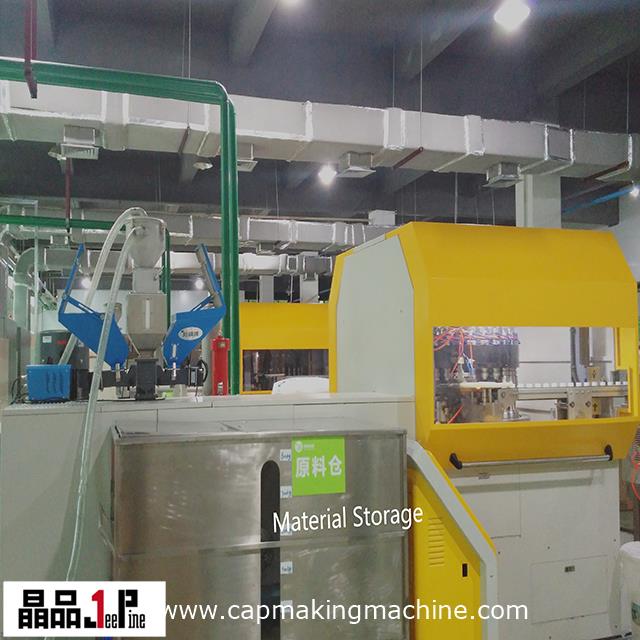

compression moulding (1).jpg compression moulding machine of water cap.jpg


cap compression moulding workshop.jpg plastic cap slitting machine.jpg


2.Product specification:

Main Specification

Unit

CCM-JP36H

Raw Material

PP/PE

  Max. cap nominal diameter

mm

42

Max. cap nominal height

mm

25

Max. cap weight

g

4

bottle cap making machine avg Capacity(3025)

PCS /hour

50,000

Dimension

Cap molding machine (L*W*H)

m

8x4.2x2.6

Machine Weight

T

15

Voltage/Frequency

V/Hz

380/50

Cap cooling machine

Kw/h

3

Cap unscrambler

Kw/h

0.3

Cap slitting machine

Kw/h

4

Mold thermal regulator

Kw/h

16

Total Installed power

Kw/h

130.3

Avg power consumption

Kw/h

78


3.Feature:

A.Rotary muti compression molding process and advanced hydraulic system bring the highly stable and accurate production

B.Muti-cavity continuous high speed rotation, short cycle time, and high production efficiency

C.Low energy consumption in heating and cooling process.No hot runner, save energy effectively

D.No raw material wasted in spilling and hot runner circuit, Every single granule of raw material is fully used

E.Safe machine door interlock,emergency stop switch,rigid machine housing, U/L certified

D.Fully automatic in line production, no hand touching, avoid contamination



4.Machine Advantage:

Compared with injection moulding machine and other compression moulding machine manufacturers,Jeepine’s plastic cap compression moulding machine have the following advantages:

Plastic cap Compression moulding technology as a well known technology around the world in plastic cap production.

Energy saving

Less Energy Consumption,Overall energy savings per cap can be as high as 45%.

Because plastic cap compression moulding machine need lower heating temperature,which means less energy consumption in both heating and cooling.

High specific density and less shrinkage

Equal molding pressure, lower molding temperature allows the result of a higher density. Furthermore, less heating and cooling temperature gap accomplish less shrinkage of caps.

Quick color changeover without hot runners,only the extruder and independent cool plus mould contact the material .

Shorter cycle time (2 seconds) and therefore higher productivity

Due to lower extrusion temperature, caps are more quickly to be cooled down in cool plus mould.It makes shorter cycle time, thus capacity rises.

Easy and flexible maintenance

Independent mould make it easier to change mould, only with hand tools but not crane.

Less material waste:much lower costs per cap.


5.Mold Advantage:

The major cap mold material has excellent wear resistance,high corrosion resistance and high machinability, high coating hardness

All the molds can precisely meet the dimension tolerance of cap

Jeepine has professional manufacture equipment, dedicated to mold design and development, absolutely cope with your needs


6.Application:

Beverage, Food, Medical, Plastic cap, water cap, beverage cap,CSD cap compression moulding


7.Package and transportation:

The goods are shipped with container in the seaworthy vessel and suitable for export packaging


8.FAQ:

A.what is the process for making cap compression machine?

Main machine-cap inspection-Cap cooler-Cap sorter-Cap slitter-Cap package

B.where can see your customer’s production?

In Guangzhou, It is nearby our factory, 15 minutes by car.

C. how long to make the whole machine?

3 month for whole cap compression moulding machine


9.After-sales Service Provided:

Engineers available to service machinery overseas in 48hours

cap compression machine.png


10.Function: Cap compression machine for bottle cap production


11.Technology: Plastic cap compression moulding machine


12.Place of Origin: Guangdong, China (Mainland)


Cap compression molding machinery customer in chinaplas2018
