Liquid Closures Compression Molding Machine
1.hydraulic one with computer-controlled screen
2.automatic machine for bottle cap making
3.competitive price for this market
Liquid Closures Compression Molding Machine
This machine is specially designed to produce different kinds of bottle caps, meet the need of the business line of the medicine, cosmetics and beverage. We can provide 24 to 48 cavities according to your different productivity. All the machine are certificated by European Community and acquired the ISO 9001:2015 certification.
Specification:
Type | CCM-JP24D | CCM-JP24E | CCM-JP36E | CCM-JP48E |
Automatic Grade | Automatic | Automatic | Automatic | Automatic |
Brand Name | Jeepine | Jeepine | Jeepine | Jeepine |
Cavity | 24 | 24 | 36 | 48 |
Output | 24000pcs/h | 36000pcs/h | 54000pcs/h | 80000pcs/h |
Driven Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Voltage | 380V | 380V | 380V | 380V |
Raw Material | PP/PE | PP/PE | PP/PE | PP/PE |
Weight | 7000KG | 7000KG | 15000KG | 16000KG |
Dimension | 420cm*190cm*220cm | 420*190*220cm | 800*420*260cm | 950*420*260cm |
Frequency | 50/60HZ | 50Hz | 50Hz | 50Hz |
Cap Design | Yes | Yes | Yes | Yes |
Customized | Yes | Yes | Yes | Yes |
Advantage:
(1) Fully automatic, runnerless, reducing your costs of labor and power up to 30~60%
(2) 2~3 times faster than equivalent cavitation of compression molding machine
(3) Driven by hydraulic system, wearing of parts reduced to the minimum level
(4) Integral turntable structure design and cylinder plug promote high efficency , high stability and easy to maintance.
(5) Stable grammage and well thickness, consistent output
(6) Standard components resulting in flexible interchangeability
(7) Optimized design, user-friendly control panel, speed of production adjustable.
(8) 1 operator able to operate multiple machines simultaneously
Cap Molds
The Main Compression Molding Part
The Main Heating Part
Polymer low temperature melting technology is our main technology,which can save the energy and blend the mixture evenly.

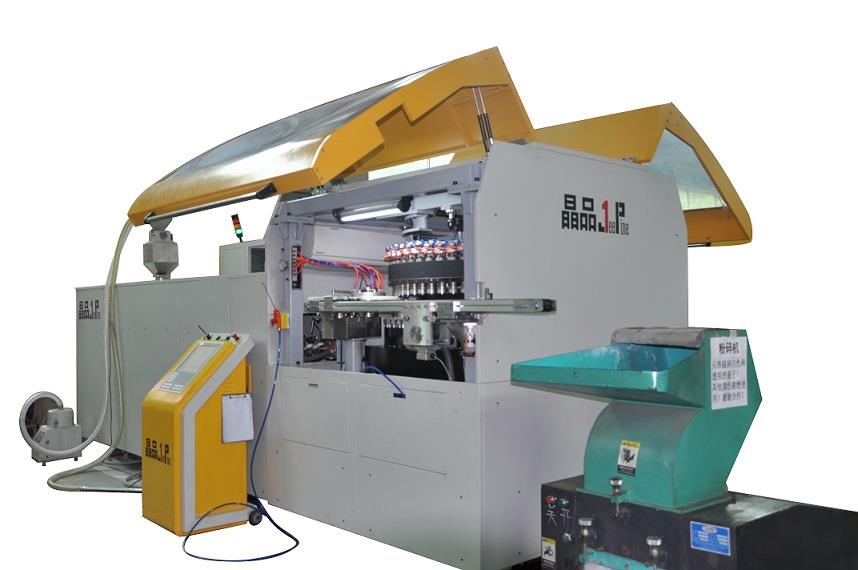

The Whole Cap Molding Machine
Payment:
1.Full payment.
2.40% down payment by T/T,60% of the balance before shipping.
Our services:
Our engineers will install the machine overseas.
Spreading the professional knowledge to the employee to operate the machine.
Updating the machine with remoting control.
Prompt the after-sales services.
FAQ:
1.Why Compression moulding is the best choice?
1)Lower heating temperature, thus bottle caps are lower shrinkage rate;
2)Lower mould maintenance cost;
3)Easier operation;
4)Less material waste in color changeover;
5)Lower production cost of unit plastic bottle caps.?
2.Service before sales?
Bottle cap customize and design based on customers’ demands.?
Assembly workshop and bottle caps production line visit.Technical support.
3.Service after sales?
1)Engineers service overseas in machine installation and maintenance.
2)Regional sales and service office in many countries.
3)Machine remote motor and control.
4) Free engineers training.
4.what is the process for making cap compression machine?
Main machine-Cap， cooler-Cap， sorter-Cap， slitter-Cap， package
5. how long to make the whole machine?
3 month for whole cap compression moulding machine.Making the mold,assemble the machine ,do the test,make the delivery
6.How long is your delivery time?
Generally it is 35 days if the goods are in stock. or it is 50 days if the goods are not in stock, it is according to quantity.
7.What is your terms of payment ?
A: 30% T/T in advance , balance 70% before shipment .
