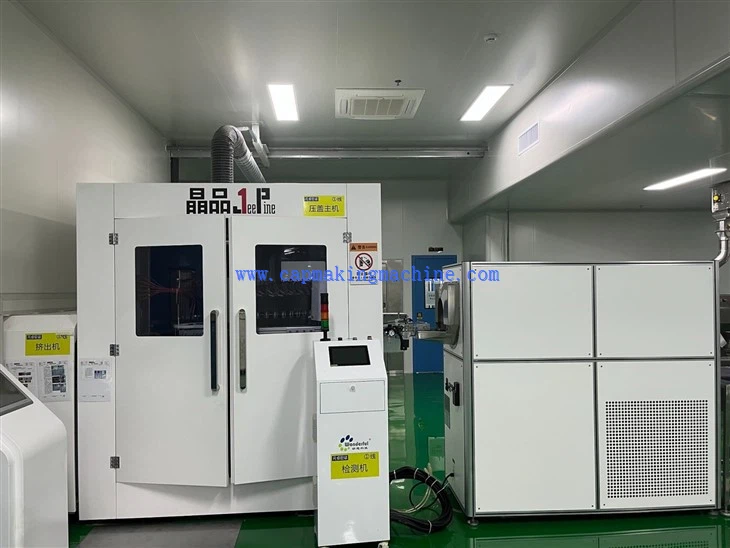

1. Continuous compression molding machine
Continuous compression molding machine for the production of plastic caps by extruding the granulated compound (HDPE, PP), cutting it into single pellets, inserting it into the cavities, and finally molding the cap according to a defined design. The output of the machine depends upon resin, part design and part weight.
The machine is equipped with:
- melted compound by-pass valve for cleaning the extruder, for start-ups and stops of the machine
- pneumatic system with device for air injection into the upper moulds
- cooling system for temperature control of upper and lower moulds
- oleo dynamic unit
- in-phase cap extracting and transferring unit on motor-driven conveyor belt, allowing on-board
installation of the vision system
- AB (ROCKWELL)brand PLC control system
- PC user interface
- Remote control module
- extruder with 75 mm diameter screw, for melted compound feeding. Temperature and screw rotating speed are managed by the control system.
- metering pump and compound mixer to achieve a better steadiness and mixture of the plastic exiting the extruder

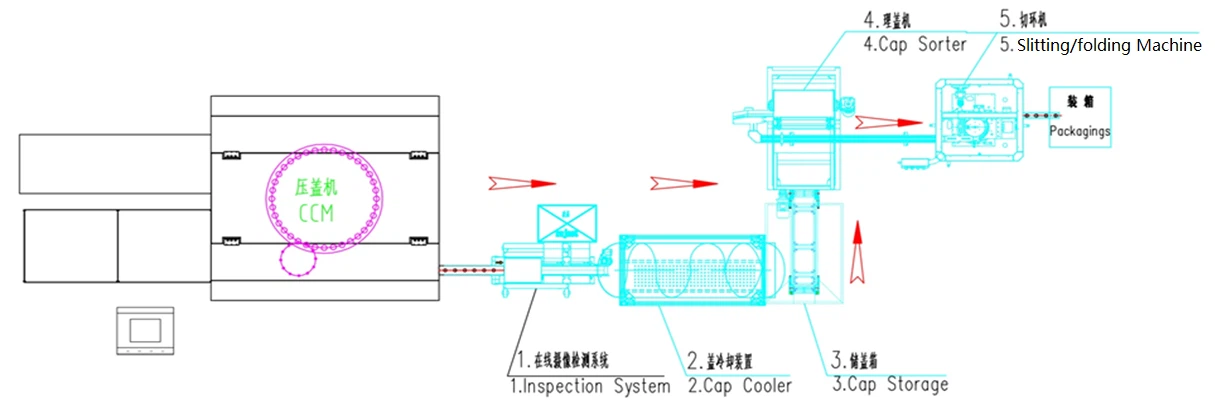

Machine layout
2. Vision Inspection System for CCM
Quality control system for plastic caps fully integrated into the compression molding machine, for inspecting the internal side of the caps and for rejecting the defective ones. By means of a camera, it is possible to detect all visible defects having enough contrast inside images, i.e. flashes, ovalization, out of standard dimensions and contamination.
3. Cap cooler
Cooling device suitable to reduce the closure temperature through airflow and mechanical advances.
The machine is equipped with:
- fans for conveying air environment
- parts in touch with the product are material for food
- clear cover for dust protection
Slitting and folding machine
The machine is used for slitting and folding process for the tamper evident band of plastic caps
Jeepine service
for more information, contact wangling@jeepine.com.cn for more
|
Machine units |
unit |
parameters |
|
|
Material |
PP/PE |
||
|
Max dia of cap |
mm |
35 |
|
|
Max height of cap |
mm |
22 |
|
|
Max weight of cap |
g |
3 |
|
|
Rated Power
|
Compression motor |
Kw |
5.5 |
|
Extruder motor |
Kw |
55 |
|
|
Hydraulic motor |
Kw |
62.2 |
|
|
Extruder heating ring |
Kw |
50 |
|
|
Vacuum pump motor |
Kw |
3 |
|
|
Total |
Kw |
175.7 |
|
|
Power/voltage/frequency |
V/Hz |
380V /50Hz |
|
|
Machine dimension |
Machine dimension (L*W*H) |
M |
8.0x4.2x2.6 |
|
Weight |
T |
15 |
|
|
Auxiliary equipment Rated power |
Chiller (3set) |
Kw |
30 |
|
Total |
Kw |
30 |
|
|
Total power |
Kw |
205.7 |
|
|
Actual power |
Kw/h |
109 |
|
